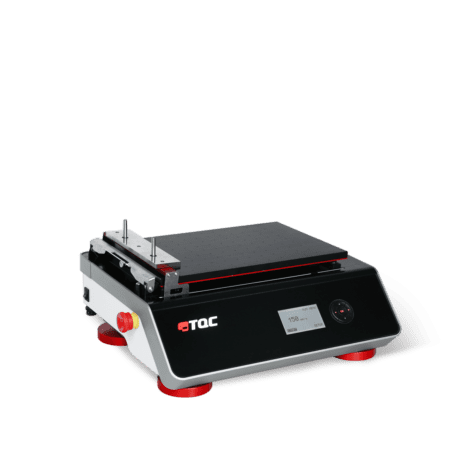

TQC AUTOMATIC FILM APPLICATOR COMPACT
Etiquetas: ASTM D823

Descrição

The AFA Compact is an entry level film applicator that accepts charts up to A4 size. Application speed can be set from 1 to 150 mm/s. The Compact is suitable for both wire wound rod applicators and block applicators. Operating is easy through the standard TQC operating interface. The AFA Compact is available with a glass bed of a perforated vacuum bed. FEATURES

  • Traverse Speed - Traverse speed 1 - 150 mm/s / 0.03 - 5.90 in/s and infinite adjustable.
  • Triple i Control - Operating is very easy with the Triple i operating interface. This unique systems guide the operator through the interface of TQC lab-machines. At each step of the operating menu the interface detects which buttons are active and indicates these by means of an illuminated red centre. This results in a very intuitive operating system which is enhanced with information on the machine’s display.
  • Clean - Supplied with drip pan and paper holder for easy cleaning.
  • Charts - Charts up to A4 size.
  • Safe - Safe 24V powered.
  • Accuracy - Very accurate traverse speed
  • Tools - Compatible with a large range of application tools.

MODELS

TQC Automatic Film Applicator Compact Glass Bed - AB3650

This model keeps the test charts in position via means of an glas bed which is produced out of ultra-flat hardened float glass. Test coating test charts or other specimen are kept in place via a manual stainless steel clamping mechanism. For cleaning purposes the glass bed can easily be removed without the use of any tools. AB3650 can be used with hiding power charts, opacity charts, spreading rate charts , brushout cards, metal test panels, paper- or cardboard coating test charts, penetration charts ,plastic or wooden sample panels, foils or other flexible surfaces with a max. dimension of Din A4 or 210 x 297 mm. or 8.3 x 11.7 inches. TQC Automatic Film Applicator Compact Vacuum Bed - AB3655 This model keeps the test charts in position via means of an ultra-flat perforated vacuum bed made of hard-anodized aluminium. A stainless steel clamp is also fitted to fix the draw down charts without vacuum. For cleaning purposes the vacuum plate can easily be removed without the use of any tools. AB3655 can be used with hiding power charts, opacity charts, spreading rate charts, metal test panels, paper- or cardboard coating test charts, brushout cards , penetration charts, plastic or wooden sample panels, foils or other flexible surfaces with a max. dimension of Din A4 or 210 x 297 mm. or 8.3 x 11.7 inches. INSTRUMENTS CONTROL ADDITIONAL DETAILS

TRAVERSE SPEED 1 – 150 mm/s / 0.03 – 5.90 inch/s
SPEED ACCURACY < 1%
STROKE LENGTH 250 mm / 9.84 in
STROKE LENGTH ACCURACY <1 mm (0,025 mm/step) / <0.03 inch
MAX. TEST CHART SIZE DIN A4
MAX. TEST SUBSTRATE THICKNESS 8 mm / 0,31 inch (incl coating)
MAX. SIZE OF PANEL 300x200x8 mm / 11.81×7.87×0.31 inch
MAX. HEIGHT FILM APPLICATORS 40 mm / 1.57 inch
MIN. WIRE BAR LENGTH >220 mm / >8.66 inch
WIRE BAR DIAMETER 6 – 12,7 mm / 0.23 – 0.5 inch
VOLUME DRIP PAN 30 ml
MIN. VACUUM -100 mbar
DIAMETER VACUUM HOLES 1,3 mm / 0.05 inch
DISTANCE VACUUM BED HOLES 22 mm / 0.86 inch
NUMBER OF HOLES IN VACUUM BED 117
VACUUM CONNECTION 6 mm / 0.23 inch Quick Connect
DIMENSIONS 335x400x190 mm / 13.18×15.74×7.48 inch
MASS 12,5 kg / 27.55 lbs
POWER 110 – 240VAC / 50 – 60Hz
POWER CONSUMPTION Max. 40 Watt
DISPLAY 128 x 64 pixels graphical LCD, 70 mm x 40 mm, white illuminated, heated
LANGUAGES

English

AVAILABLE TO ORDER

AB3655 TQC Automatic Film Applicator Compact, vacuum bed,  230/115 VAC
AB3650 TQC Automatic Film Applicator Compact, glass bed,  230/115 VAC
ACCESSORIES
VACUUM PUMP OIL-FREE Oil-free vacuum pump. Available in 110VAC/60Hz and 220VAC/50...
AB3662 Spare paper support
  AB3657 Spare drip pan
AB3667 Spare Vacuum Bed for Automatic Film Applicator Compact
AB3670 Spare Glass Bed for Automatic Film Applicator Compact
  AB3680 Optional weight 250g
BIRD-TYPE FILM APPLICATORS, SINGLE GAP TQC Bird-type film applicator with one flat edge. One application side for applying 1 predefined thickness. The TQC Bird-type applicator single ...
TEST CHARTS   A wide range of consistent test charts for testing physical properties of coating, lacquers and inks. Suitable for determining hiding ...
BIRD-TYPE FILM APPLICATORS, 4-SIDED TQC Bird-type film applicator with flat edges. Four application sides for applying 4 different pre-defined thicknesses. The TQC Bird-type applicator is ...
BAKER FILM APPLICATORS Cylindrical film applicator with 4 application sides for applicating paint-films of 4 different predefined thicknesses. The Baker applicator’s are available in ...
WIRE BAR COATER TQC Wire bar applicator with a film width of 310 mm and available in ranges from 4 to 200 µm The Wire bar ...

DOWNLOAD Datasheet TQC AUTOMATIC FILM APPLICATOR COMPACT Brochura TQC AUTOMATIC FILM APPLICATOR COMPACT
