CROSS CUT ADHESION TEST KIT CC3000
Etiquetas: ASTM D3359, ISO 2409

Descrição

The TQC Cross Cut Adhesion Test KIT CC3000 is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates.

FULLY ADJUSTABLE

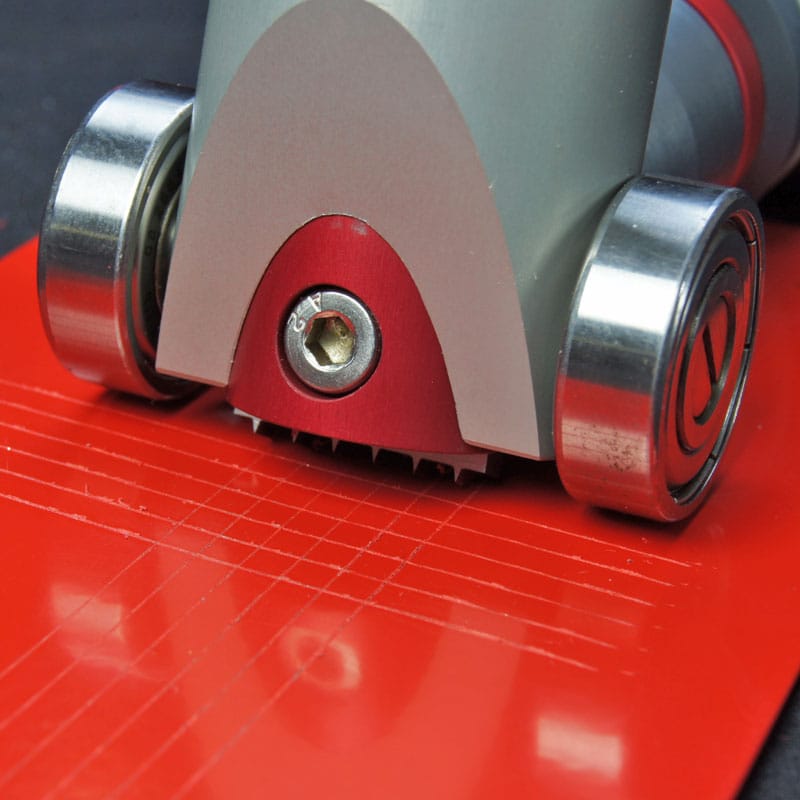

The cutting depth of the TQC Cross Cut Adhesion Test KIT CC3000 can be adjusted while the cutter is guided by two ball bearings to assure reproducible results. The depth of the TQC Cross Cut Adhesion Test KIT CC3000 is adjustable to measure coatings up to 250 µm thick.

FEATURES

• The blade holder is kept at a set distance from the surface with the aid of two wheels (ball bearings). Reproducible test results guaranteed.

• Ergonomically shaped handle

• Easy to change cutting knife

• Wide range of knife sizes available for different coating thicknesses and substrates and according to different standards. Each TQC Cross Cut Adhesion Test KIT CC3000 contains a grip with cutter, a brush, an illuminated loupe and a roll of adhesive tape acc. EN ISO 2409.

Knives and tape can be ordered as a spare as well.

DOWNLOAD

Datasheet CROSS CUT ADHESION TEST KIT CC3000
